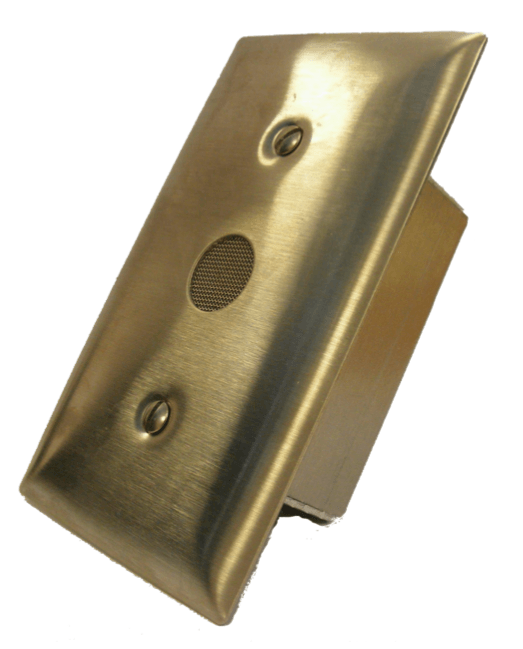

M1C Vandal Resistant Condenser Microphone

OVERVIEW:

The M1C is a low-profile, transformer-balanced, line level output microphone designed for surveillance and other ambient miking scenarios. It provides faithful reproduction of sounds across a wide frequency and dynamic ranges. Installer-friendly design provides fast and reliable installations. The flush mount installation allows the M1C to virtually disappear in most environments.

Featuring a premium, omnidirectional condenser capsule the M1C boasts 95dB of dynamic range, a 74dB Signal to Noise Ratio @ 1 Pascal, and a frequency response of 250Hz - 10KHz +/-3dB. Also the M1c supports cable runs over 1000'. The integrated, miniature preamp circuitry is fully shielded and transformer-balanced making it highly immune to RF. It can be powered via phantom power or direct connection to 24~48VDC power supply.

The M1C is designed to integrate with standard, single-gang electrical boxes. Also, the screw terminal block connector provides a reliable and easy termination. The stainless steel face plate is low profile and blends into many decor styles making for an almost invisible installation.
FEATURES:
  • High-output omnidirectional capsule
  • Immunity from RF
  • Transformer-balanced
  • Line level output
  • 95dB dynamic range
  • Powered by 24~48V phantom power
  • Installs into single-gang electrical box
  • Designed, tested, & manufactured in the USA

APPLICATIONS:
  • Surveillance
  • Hospital and medical facilities
  • Conference room
  • Room ambience

  • INCLUDES:
  • M1C Microphone
  • Stainless steel face plate with integral windscreen
  • 2 plate screws
  • Installation instructions

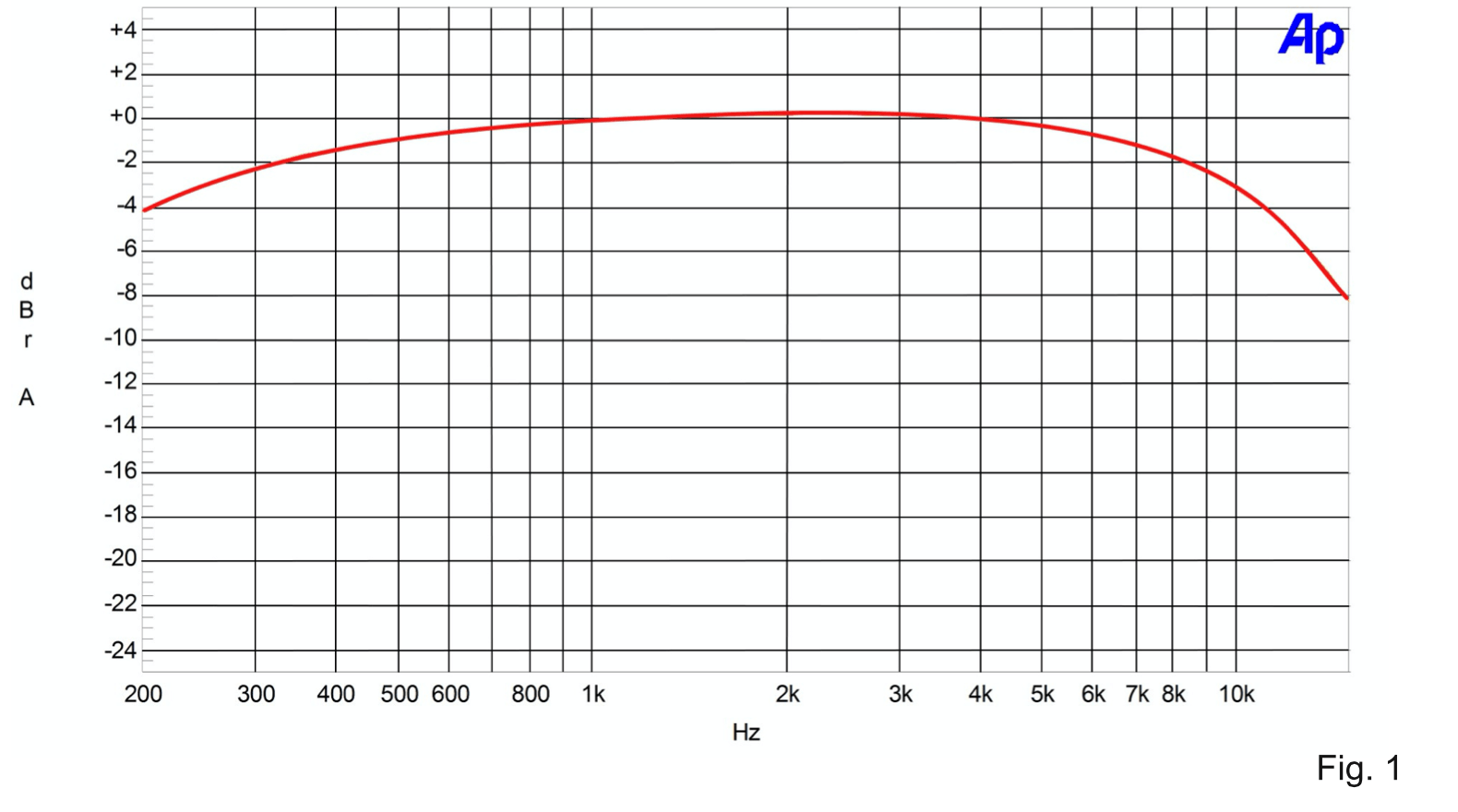

FREQUENCY RESPONSE

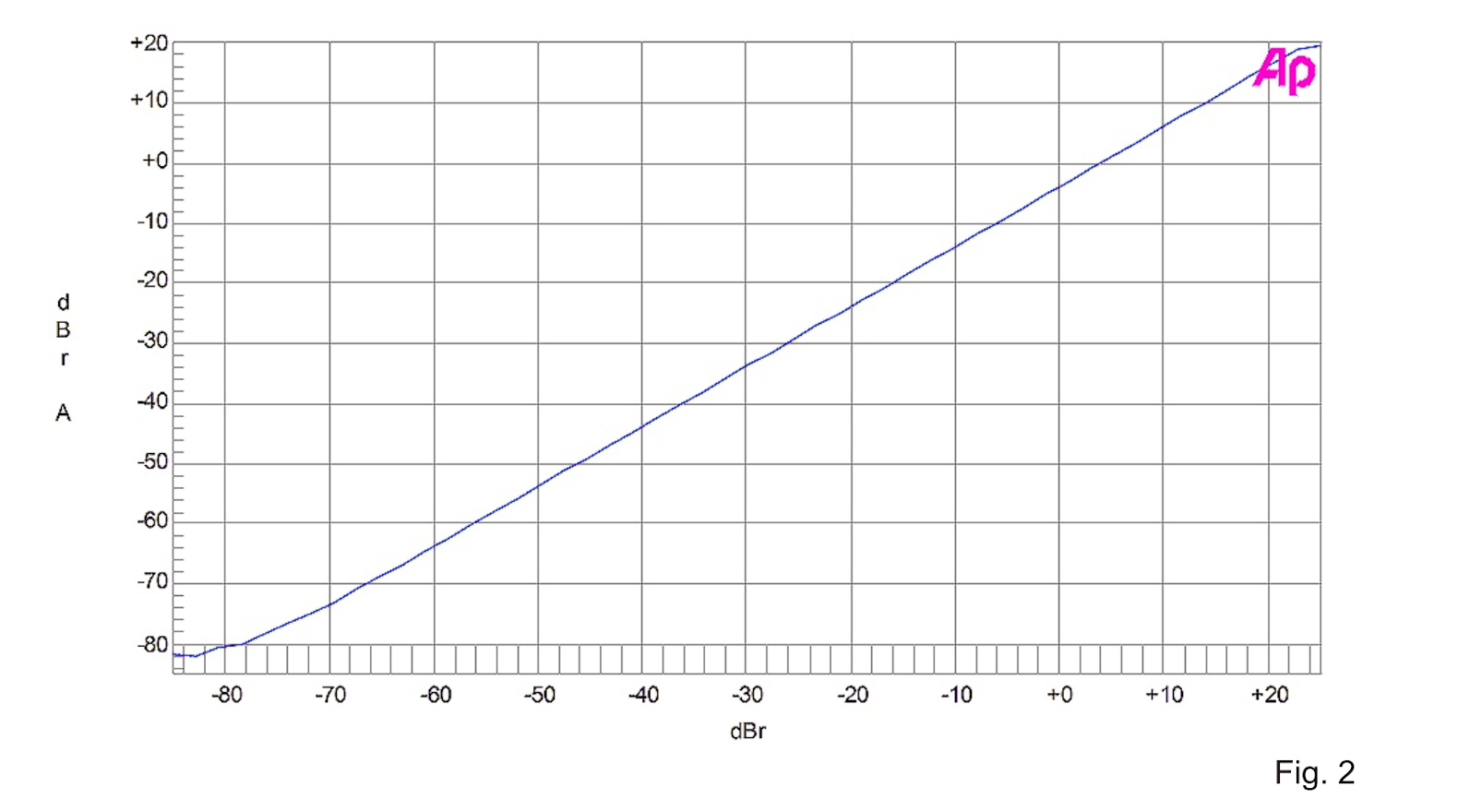

SIGNAL TO NOISE RATIO

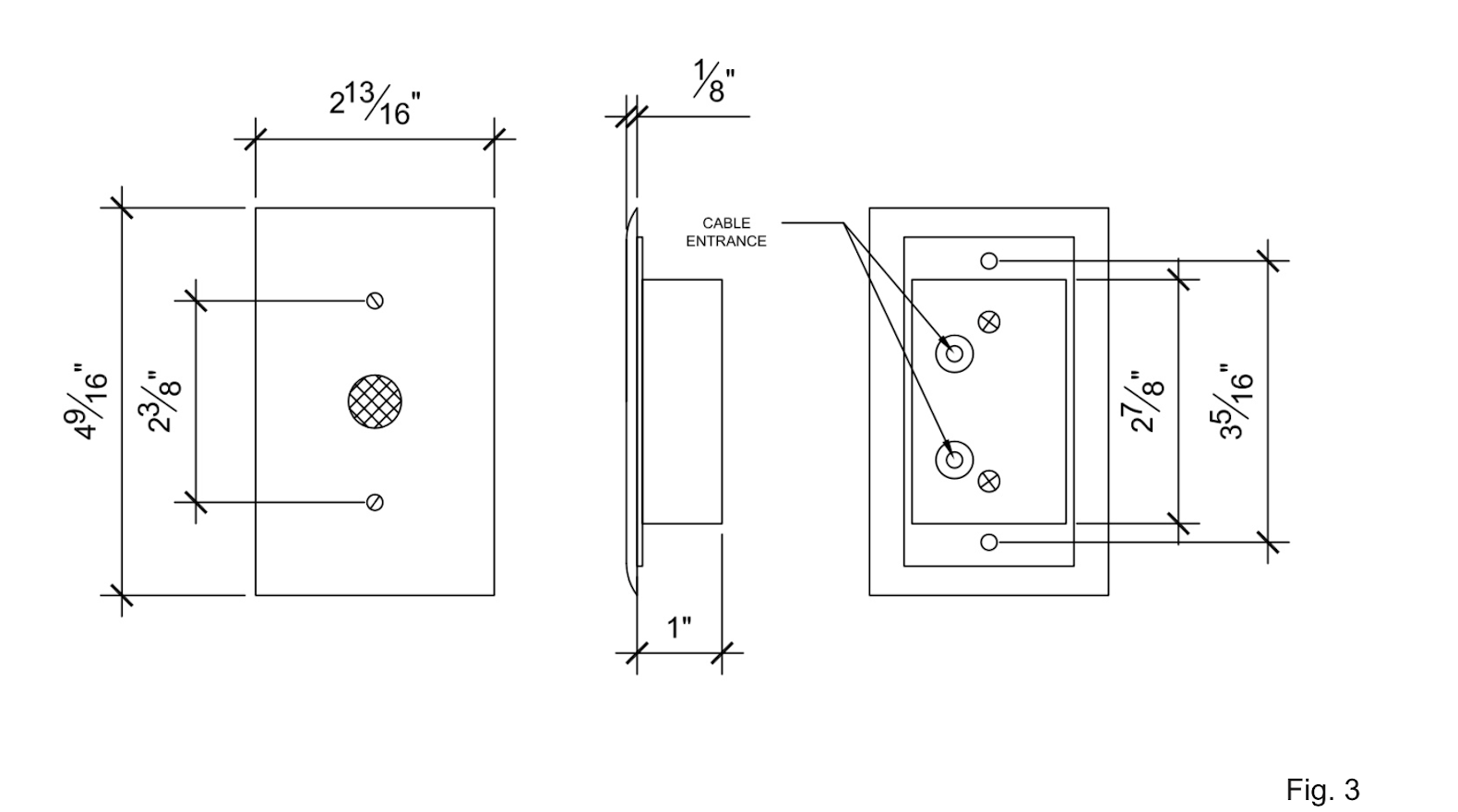

DIMENSIONAL DRAWING
